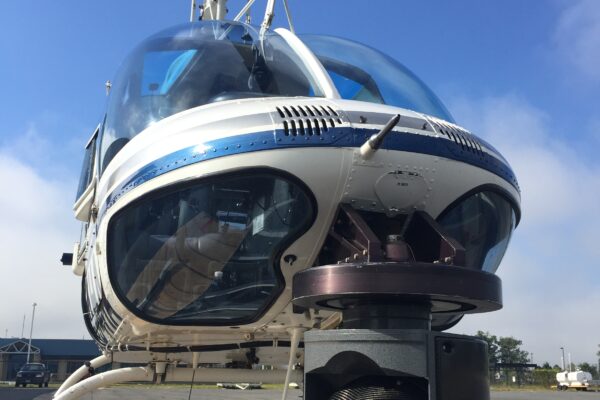

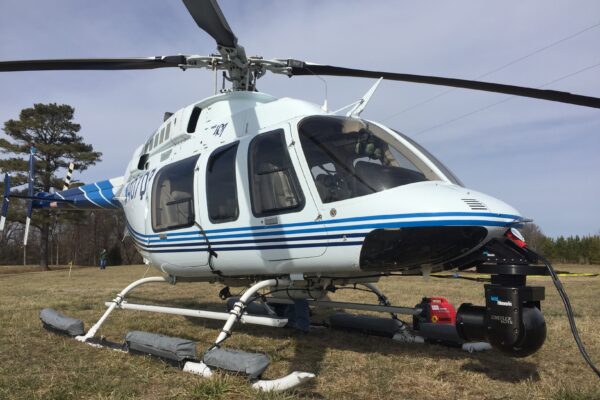

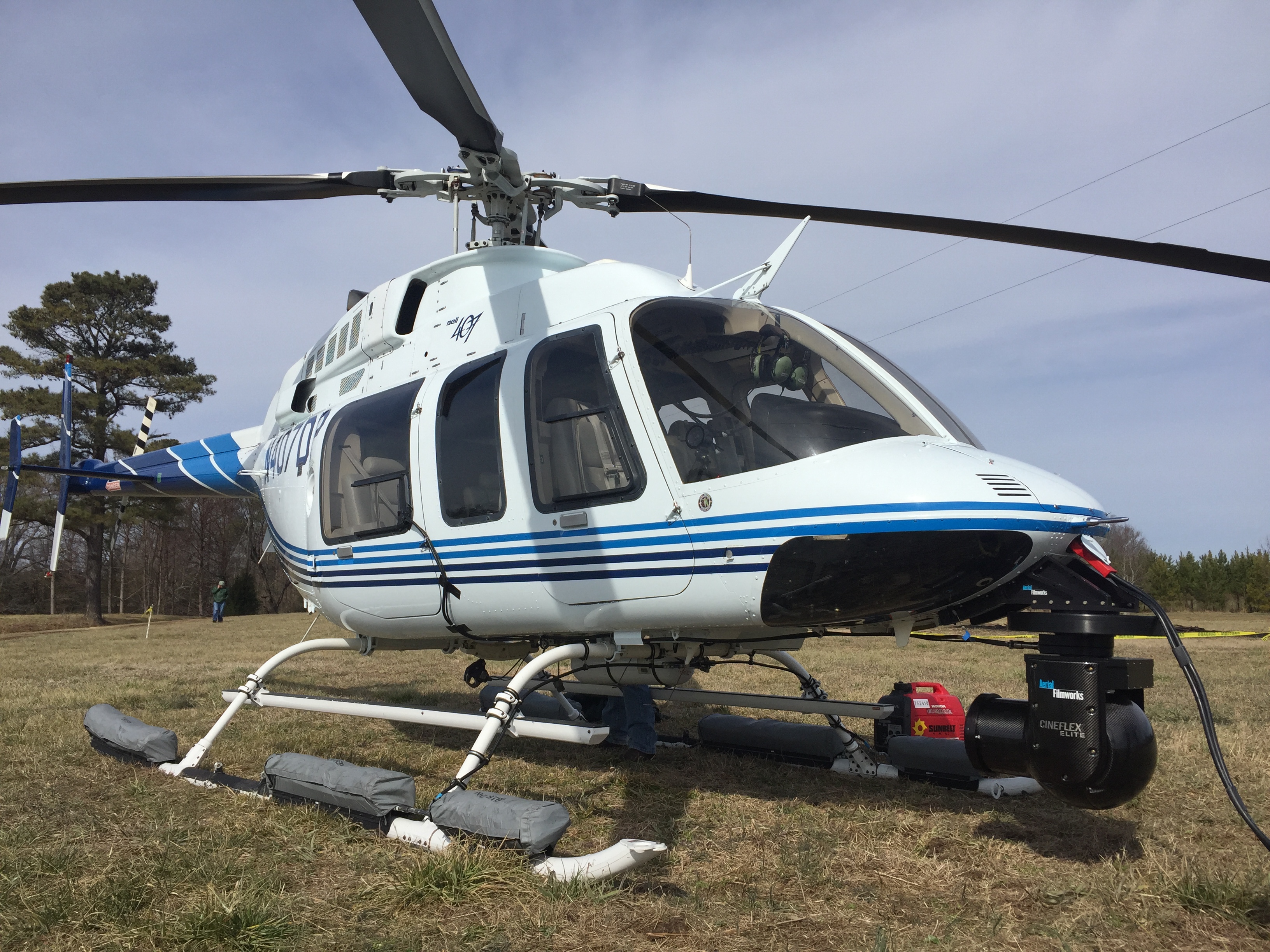

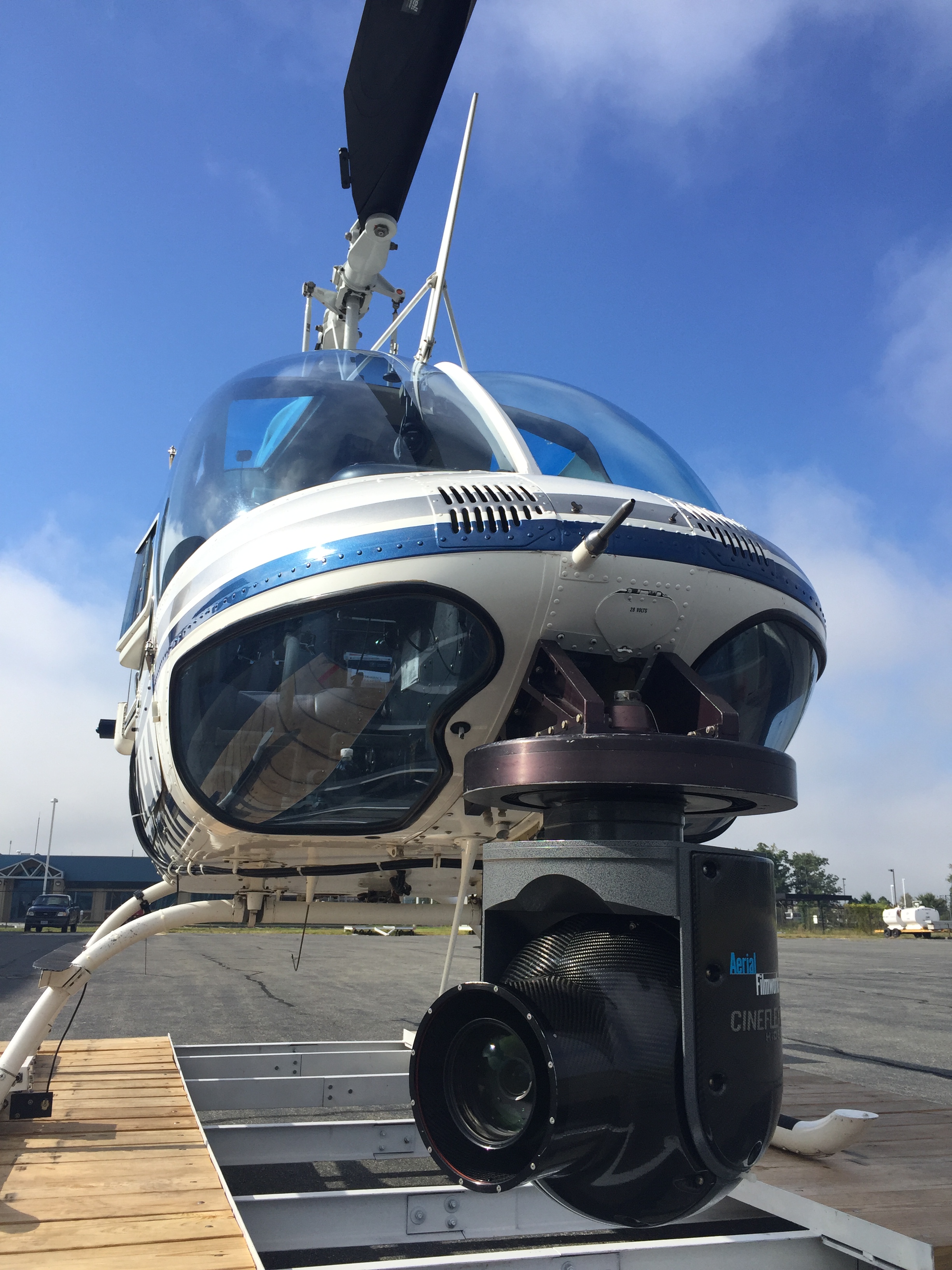

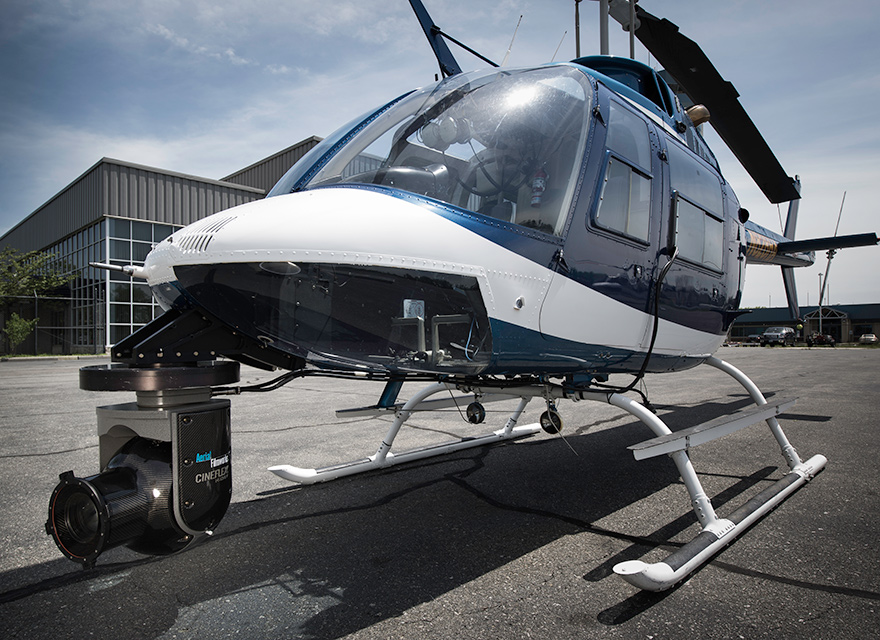

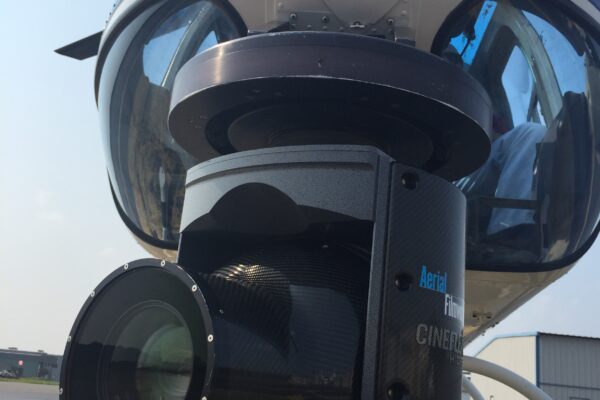

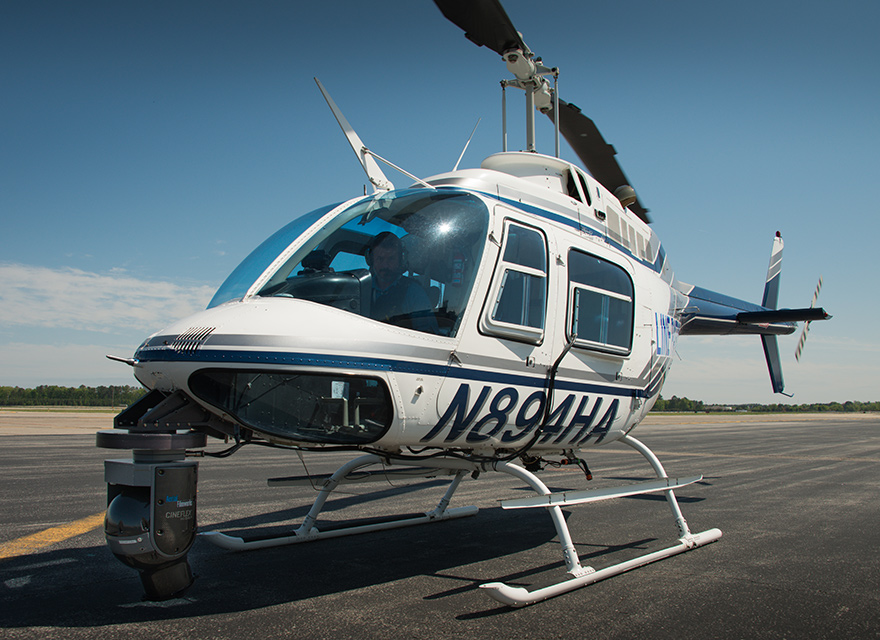

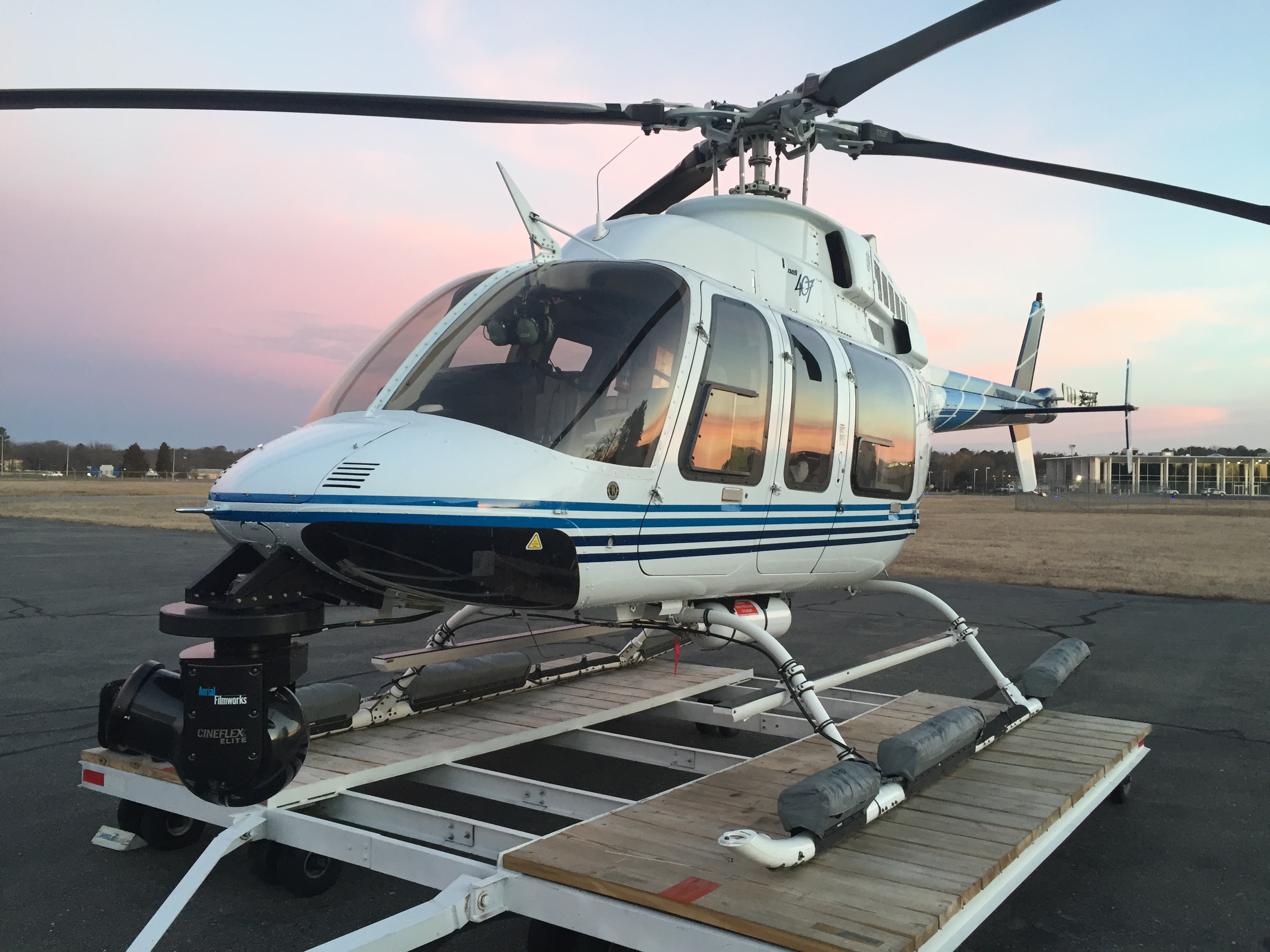

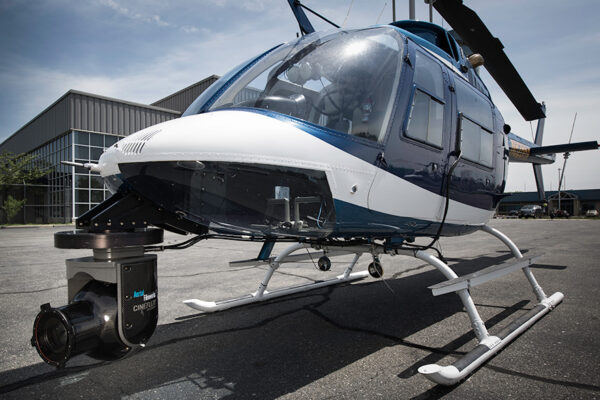

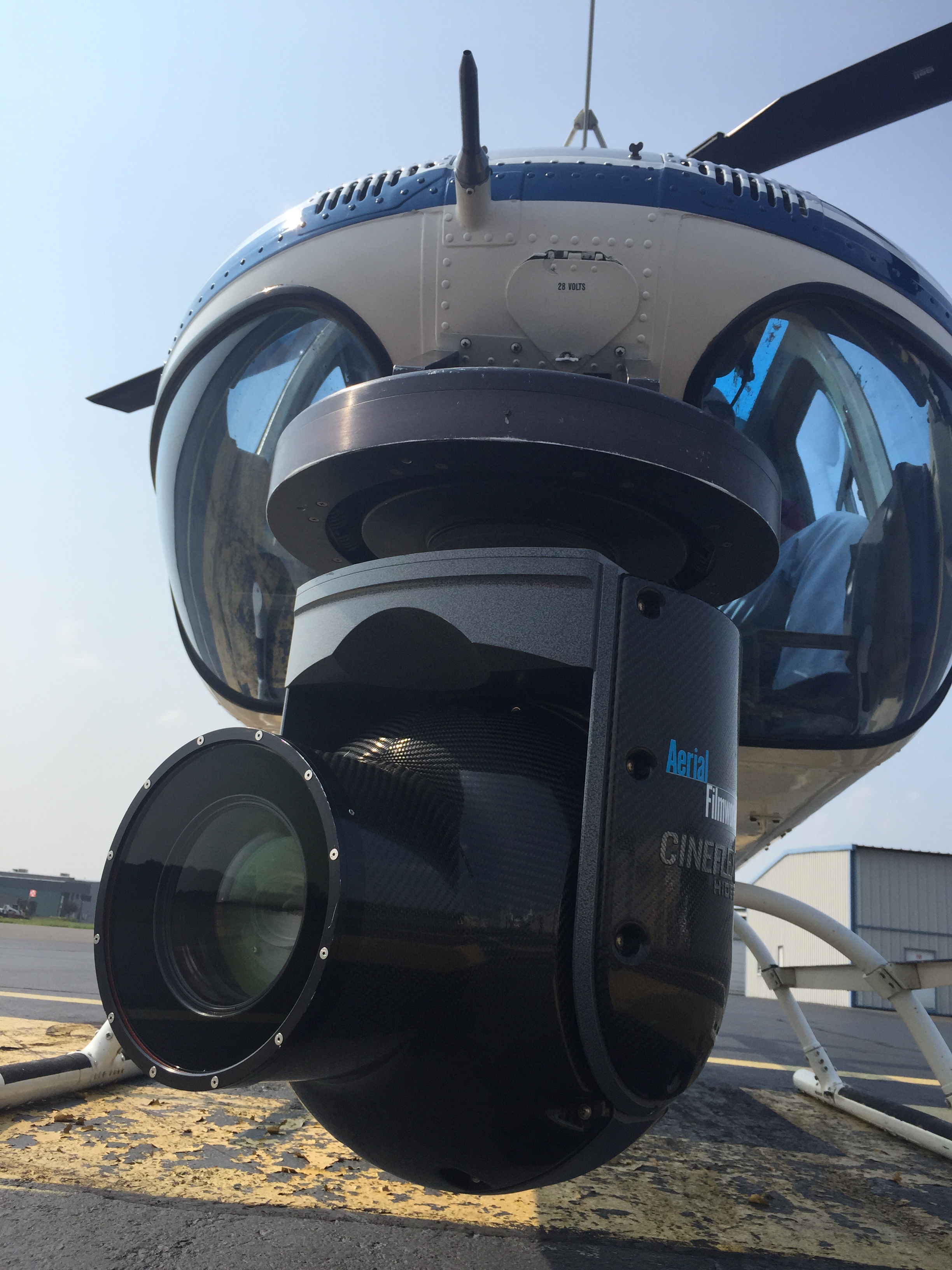

Cineflex EliteNew Media Systems has partnered up with Aerial Filmworks to offer High Def Aerial Video using the Cineflex Elite, Cineflex Ultra, and Cineflex V14 aerial camera system. We can provide complete Cineflex systems with HD LCD director monitors, helicopter brackets and HD recording options. The Cineflex is the ultimate gyro-stabilized aerial platform for HD aerial filming, video production and transmission line or pipeline survey.

The compact gimbal does not restrict aircraft operation and flight characteristics. Extremely durable and weather-resistant, the camera can be flown safely at higher airspeeds in extreme cold, hot or dusty conditions.

Some systems are based in Richmond, Virginia and available within a days drive along the Mid-Atlantic Region.  Worldwide Rental is also available.

Available Cameras

  • RED Epic Dragon
  • Arri Alexa M w/ XR Upgrade
  • Sont 1500L

Cineflex UltraCineflex Ultra
The Cineflex Ultra not only changes the game, but re-writes all of the rules! The Ultra integrates a RED 6K Dragon camera with the world’s most advanced gyro-stabilized aerial camera system. Aerial Filmworks newest Cineflex comes with multiple lens options including the Canon 30-300mm Cinema Zoom, Canon 14.5-60mm Cinema Zoom, and Fujinon 42x 9.7mm lens andIBE HDx35 B4/PL Adapter for extremely long focal lengths.

Our RED Carbon Fiber Dragon is configured with the RED 512Gb and 1Tb MINIMAG Side module which doubles record time. More record time equals longer helicopter flights. A quick-change gimbal door allows media changes in less than 1 minute. All RED Dragon camera controls are via the camera operator’s on-screen display, or through the REDMOTE.

The re-engineered laptop controller includes LED lighting and a USB power port for charging of mobile devices.

arri-alexaxt-mCineflex Elite
The new lightweight Cineflex Elite with integrated ARRI ALEXA-M and ALEXA-XTM cameras provide directors with more creative freedom at a lower cost than any other aerial filming gyro-stabilized system. The Cineflex Elite combines the ARRI ALEXA Super 35 camera and Canon 4k Digital Cinema Zoom lenses into the 5 axis gyro-stabilized Cineflex for rock solid imagery in all weather conditions. Onboard recording is available to XR Capture Drives, SxS Pro Media cards, and 3G single or dual link for ARRIRAW capture. The ARRI ALEXA has high speed rates up to 120 frames per second. Lens choices include 14.5-60mm and 30-300mm zooms.

The ARRI ALEXA extends the value of aerial filming production by simultaneously recording ARRIRAW 2880 x 1620 files to a Gemini 444 and Apple ProRes 1080p to SxS media. Recording options include SxS 64Gb Pro Media, Gemini 444 ARRIRAW digital recorder, Sony HDCAM SR, AJA KiPro, and the NanoFlash. Other record decks available upon request.


Cineflex V14
The Cineflex V14 is the workhorse of the aerial industry. With over 100 Cineflex systems throughout the world, the amazing gyro-stabilization and rock solid images have changed the face of nature documentary and adventure sport films.

Cineflex V14HD is the ultimate lightweight, high-definition gyro-stabilized camera system. With numerous helicopter mounts and marine or land-based options, the camera delivers beautiful HD video. The Cineflex V14HD can operate at up to 160 mph and features the ability of 360 degree continuous pan, 165 degree tilt, and +/- 45 degrees roll, automatic and steerable, all with amazing accuracy and stability.

Designed around Sony’s CineAlta HDC1500 series, the Cineflex utilizes top-quality Fujinon lenses that are specifically adjusted by Fujinon for use in the Cineflex gimbal. Full 1920 x 1080 resolution with dual-link 4:4:4 video output is standard. The auxiliary box provides multiple 12v power outlets for monitors along with SD and HD SDI connections.

The durable carbon-fiber encased laptop controller contains a Sony RM-B750 for easy access to all camera exposure, gamma, and color functions. Camera operators can preset or store scene files for sequence continuity.

click on any photo to view larger image

Official Aerial Provider / Cineflex Operator for

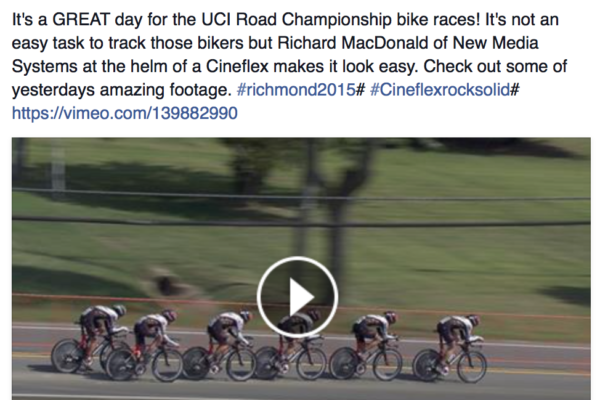

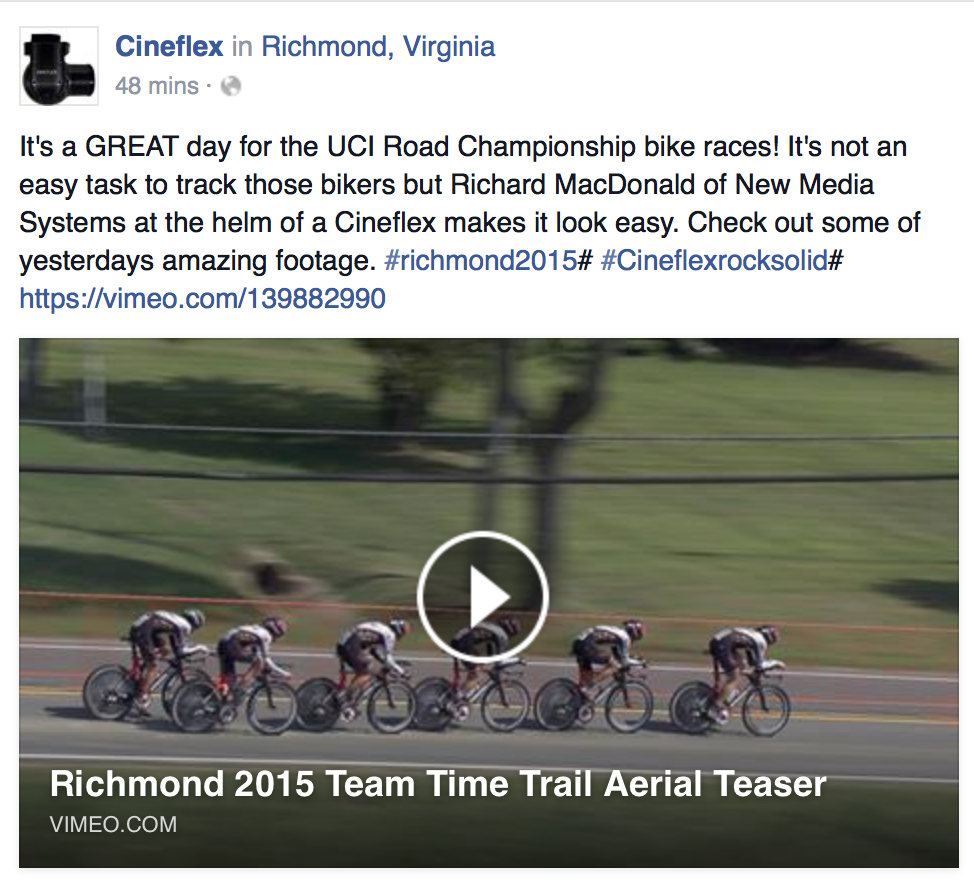

UCI Richmond 2015
